Before customizing a 3D model, you first need to add it into your app. After you've added a 3D model to your app, you can enhance the visual and interactive experience by customizing how the 3D model looks and moves.

For example, you can play and control embedded glTF animations, access and move nodes that make up your model, or even load custom textures and define material properties to override internal meshes. These capabilities let you dynamically alter an object's appearance and behavior at runtime.

3D objects in Android XR

The Jetpack XR SDK supports the glTF 2.0 open standard by Khronos Group for 3D models and renders these objects with physically based rendering (PBR) techniques specified in the glTF 2.0 standard (along with supported extensions). A glTF (Graphics Library Transmission Format) is a standard file format for transmitting and loading 3D scenes and models. A glTF model is composed of a hierarchical structure of internal components.

Here are the key components to understand:

  • Nodes: These define the structure and hierarchy of the model. Each node can have its own position, rotation, and scale.
  • Meshes: The structural, 3D geometry that forms the shape of a 3D object.
  • Materials: These define the visual appearance of the meshes, such as their color, roughness, or how they react to lighting.
  • Textures: An image asset, such as a PNG file, that you can apply to the surface of a 3D model to create custom patterns, color, detail, or other visual effects.
  • Animations: These are predefined sequences or animation tracks that contain changes to individual nodes and meshes to create the appearance of movement over time.

In Jetpack Compose for XR, you render these files using SpatialGltfModel and track its loading and animation status using a SpatialGltfModelState. For more information, see Add 3D models to your app.

Animate 3D models

3D models can have embedded animations. Internally, animations use samplers to define the timing and values of a movement, and channels to connect those movements to individual nodes and meshes. Skeletal animations and material animations created with the KHR_animation_pointer glTF extension are supported in the Jetpack XR SDK.

Using Compose for XR, to play an animation, specify the name of the specific track from the list of animations. Use animation.start() to begin playing. Optionally, you can specify the speed, the seek time, and whether or not the animation should loop using SpatialGltfModelAnimation:

val animation = modelState.animations.find { it.name == "Walk" }

animation?.animationState?.let { state ->
    LaunchedEffect(state) {
        Log.i("SpatialGltfModelAnimationSample", "Animation State: $state")
    }
}

DisposableEffect(animation) {
    animation?.loop()
    onDispose {
        animation?.stop()
    }
}

Manipulate Nodes: Poses and Rotation

To manipulate specific parts of a model and change its properties like rotation or pose, you'll need to query the internal nodes of the glTF model using SpatialGltfModelState.

// Retrieve the list of nodes (individual components/meshes) defined within the glTF model.
val entityNodes = modelState.nodes

// Find a specific node by name to apply modifications, such as material overrides.
val node = entityNodes.find { it.name == "node_name" }

After you find the correct node, you can set its localPose to change its 3D position and rotation relative to its immediate parent GltfModelNode or use modelPose to set the position relative to the GltfModelEntity root. Similarly, you can use localScale/modelScale to change the scale of the model relative to its parent or root.

LaunchedEffect(node, degrees) {
    val rotation = Quaternion.fromEulerAngles(degrees, 0f, degrees)
    node?.let {
        it.localPose = Pose(it.localPose.translation, rotation)
    }
}

Customize the material properties of your 3D model

You can adjust material attributes during runtime to change an object's appearance dynamically based on user input or the current state of the app.

In Jetpack XR, the KhronosPbrMaterial and KhronosUnlitMaterial classes are used to create and manipulate these materials. As the name implies, KhronosUnlitMaterials are unlit and not impacted by scene lighting. KhronosPbrMaterial lets you customize a wider range of properties, such as sheen color, how metallic or rough an object is, and whether it emits light.

For more information about each supported property and the customizable parameters in Android XR, see our reference documentation. To better understand these properties, see the Khronos glossary.

Figure 1. Example of changing the base colors on a 3d model.

To customize the material properties of your 3D model, first you'll create the new material using KhronosPbrMaterial. You'll need to set the appropriate AlphaMode for the visual appearance you are trying to achieve:

Next, define the properties you want to modify. This example uses setBaseColorFactor to change the base color of the mesh to purple. This method requires a Vector4, where the x, y, z, and w components correspond to the RGBA (Red, Green, Blue, and Alpha) values respectively:

// Maintain a reference to the custom material to avoid re-creating it on every recomposition.
var pbrMaterial by remember { mutableStateOf<KhronosPbrMaterial?>(null) }

// Create and apply the custom material once the session is ready and the target node is available.
LaunchedEffect(node) {
    val material = KhronosPbrMaterial.create(
        session = xrSession,
        alphaMode = AlphaMode.OPAQUE
    ).also {
        pbrMaterial = it
        // Apply a base color factor (RGBA) to change the color of the model.
        it.setBaseColorFactor(
            Vector4(
                x = 0.5f,
                y = 0.0f,
                z = 0.5f,
                w = 1.0f
            )
        )
    }

Load custom textures for your 3D model

A Texture is an image asset that you can apply to the surface of a 3D model to provide color, detail, or other surface information. The Jetpack XR Texture API lets you load image data, such as PNG files, from your app's /assets/ folder asynchronously.

When loading a texture, you can specify a TextureSampler, which controls how the texture is rendered. The sampler defines filtering properties (for when the texture appears smaller or larger than its original size) and wrapping modes (for handling coordinates outside the standard [0, 1] range). A Texture must be assigned to a KhronosPbrMaterial to have a visual effect on a 3D model.

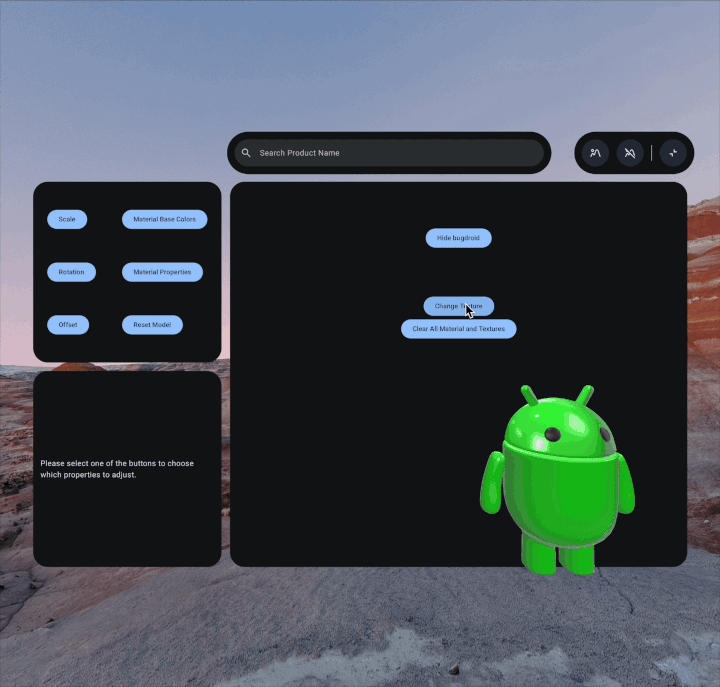

Figure 2. Example of changing the texture on a 3d model.

To load a custom texture, first you'll need to save the image file to your /assets/ folder. As a best practice, you might want to create a textures subdirectory in that folder as well.

After you've saved the file in the appropriate directory, create the texture with the Texture API. This is also where you would apply an optional TextureSampler if needed.

This example applies an occlusion texture and sets the occlusion strength:

LaunchedEffect(node) {
    val material = KhronosPbrMaterial.create(
        session = xrSession,
        alphaMode = AlphaMode.OPAQUE
    ).also {
        pbrMaterial = it

        // Load a texture
        val texture = Texture.create(
            session = xrSession,
            path = Path("textures/texture_name.png")
        )

        // Set the texture and configure occlusion to define how the material surface handles ambient lighting.
        it.setOcclusionTexture(
            texture = texture,
            strength = 1.0f
        )
    }
    node?.setMaterialOverride(
        material = material
    )
}

Apply materials and textures to your 3D objects

To apply the new material or texture, override the existing material for a specific node on your glTF node. Do this by calling setMaterialOverride:

node?.setMaterialOverride(
    material = material
)

To remove the newly-created materials, call clearMaterialOverride on the previously overridden node. This returns your 3D Model to its default state:

if (removeMaterial) {
    node?.clearMaterialOverride()
}

glTF and the glTF logo are trademarks of the Khronos Group Inc.
